Luoyang Tailian New Material Co., Ltd.
Luoyang Tailian New Material Co., Ltd.
Home > Industrial Aluminum Foil >

Industrial Aluminium Foil For Power Battery

Luoyang Tailian New Material Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

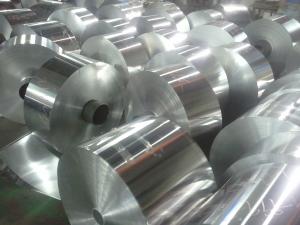

Industrial Aluminium Foil For Power Battery

Brand Name : Tai Lian
Model Number : 1060 / 1070 H18; 3003 H18
Certification : ISO9001, ISO14001
Place of Origin : China
MOQ : 2 ton
Price : negotiation
Payment Terms : T/T, L/C, DP
Supply Ability : 500 tons per month
Delivery Time : 10-30 days
Packaging Details : Strong sea-worthy export package
Type : coil
Alloy : 1060 1070 3003
Temper : H18
Use : battery ect.
Name : Aluminum Foil
Thickness : 0.02mm-0.05mm
Width : 500mm
shape : coil
Contact Now

Industrial Aluminum Foil For Power Battery


Material Advantages


1.The inhibition of cell polarization, reduce the heating effect and improve the rate performance;


2.Reduce the battery internal resistance, and decrease the circulation process of dynamic resistance increase;


3.Improve the consistency, increase the battery cycle life;


4.Improve the adhesion of and active materials, reduce the pole piece manufacturing cost;


5.Protect collection of fluid from the electrolyte corrosion;


6.Improve lithium iron phosphate, lithium titanate materials processing performance.


Service advantage

We enthusiastically provide sincere and prompt service to our customers and establish sustainable business relationship with them. Our products are designed and manufactured with one-stop solution providing ability. With 100% factory inspection, we are responsible for any problems subjected to malfunction in warranty period.

1) Punctual delivery time:
• We put your order into our tight production schedule, keep our client informed about production process, ensure your punctual delivery time.
• Shipping notice/ insurance to you as soon as your order is shipped.

2) Services after sales:
• After receiving the goods, We accept your feedback at first time.
• We could provide installation guide and if you need, we could give you global service.
• Our Sales are 24-hours online for your request,

3) Professional sales:
• We value every inquiry sent to us, ensure quick competitive offer.
• We cooperate with customer to bid tenders. Provide all necessary documents.
• We have a sales team, with all technical support from our engineer team.


Main parameter:


ApplicationLithium ion batteryPolymer battery
Alloy1145 1235 1235A 1060 1070 1085 30031235A 8021 8150 1060
TemperH180 H22 H18
Thickness( mm)0.01-0.020.012-0.06

Mechanical

Performance

U.T.S (Mpa)≥40Mpa≥40-150
Elongation(%)≥1≥1
Core (ID) mm76.276.2
Wettability≥B grade

≥B grade


Surface Qulity


Be free from Oil Stain, Dent, Inclusion, Scratches, Stain, Oxide Dicoloration, Breaks, Corrosion, Roll Marks,


Dirt Streaks and other defect which will interfere with use.


Production standard


Chemical Composite: GB/T 3190-2008, JIS, EN, ASTM


Mechanical Property: GB/T 3880-2006, JIS, EN, ASTM


Certificate


ROHS, SGS, FDA, ISO9001:2008, ISO14001:2004, GB/T 28001-2001, FORM A/E or CO, Mill Test Report.


Technical parameters


The thickness tolerance+/-5%
The width tolerance+/-1mm
The weight of per rollmore than 50kg
Inside diameter76/152mm

Elongation(more than)

Tensile strenth
0.006-0.2mm-more than 135

Usage


Mainly use for making battery.Battery aluminum foil used as a collector of lithium ion batteries.Usually, used as


the positive collector body in lithium-ion battery industry.


Coating thickness (Double side) A: 4~6um B: 2~3um


Conductive coating:


Using functional coatings for surface treatment of battery conductive substrate is a breakthrough of technical


innovation, coated carbon foil/copper foil is to spread good nano conductive graphite and carbon coated


particles, fine and uniform coating on aluminum foil/copper foil.Static electrical conductivity, it can provide an


excellent collection of active material micro electric current, which can greatly reduce the positive/negative


material and collector, the contact resistance between the and can improve the adhesive ability between the


two, can reduce the use amount of binder, which creates an significantly improve the overall performance of


the battery.Can be divided into water based coating (water system) and oil (organic solvent system) two types


Main Product Form


Product NameAlloyTemperThicknessWidth
Container Foil3003/8011O/H22/H240.045mm- 0.12mm150mm -1300mm
Household Aluminum Foil1235/8011O0.01mm- 0.02mm150mm -1250mm
Aluminum Foil for bottle cap1050/1060/1070H180.14mm- 0.27mm900mm -1100mm
Aluminum Foil for yogurt lid1235/8011O0.028mm-0.040mm15mm -1250mm
Aluminum Foil for PP cap8011H140.18mm-0.24mmper cutting request
Beer bottle mark Foil8011O0.010mm150mm -1250mm
Pharmaceutical Foil8011H18/O0.018mm- 0.03mm150mm -1250mm
Package, converting Foil1235/8011O0.006mm-0.009mm150mm -1250mm
Cigarette Foil1060/1070/3003/8011O/H14/H18/H240.05mm- 0.60mm5mm -200mm
Hydrophilic Aluminum Foil1100/1200/3102/8011O/H22/H24/H260.08mm- 0.20mm60mm -1440mm
PS/CTP base board1050/1060/1070H14/H160.15mm- 0.70mm900mm -1100mm
Aluminum Foil of narrow width1060/1070/3003/8011O/H14/H18/H240.05mm- 0.60mm5mm -200mm
Cable material1050/1060/1100/1235/8011O/H22/H240.10mm- 0.20mm100mm -1000mm
Adhesive tape foil1235/8011/8079O0.015mm- 0.05mm150mm -1250mm
